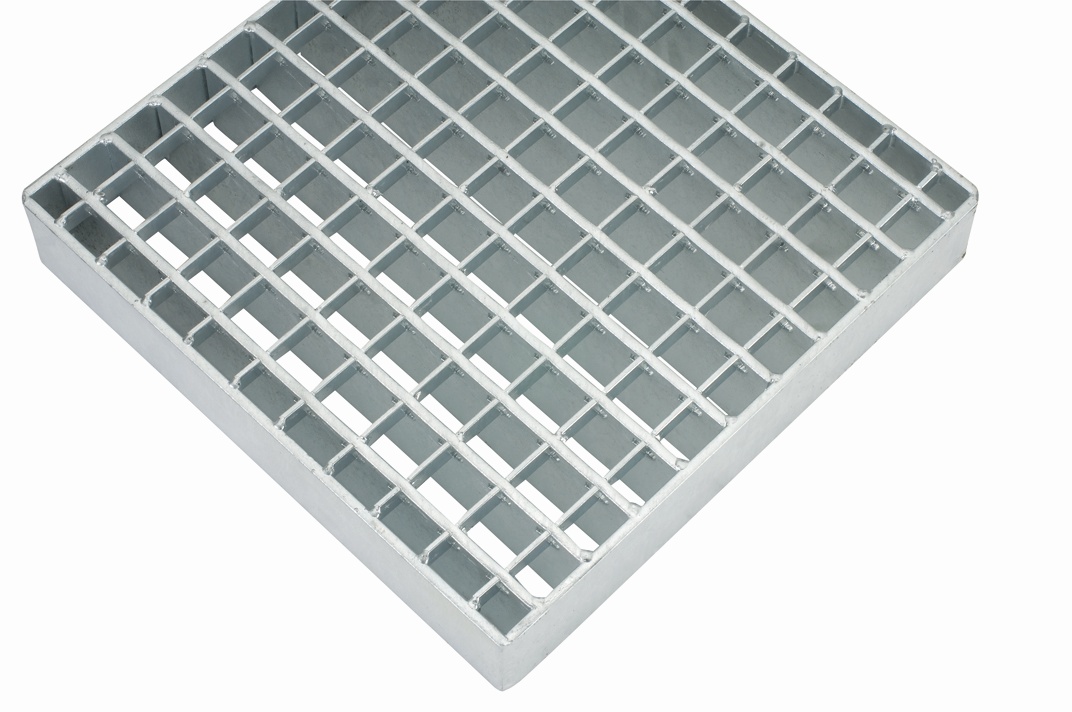

DPH DEJO HEAVY-DUTY GRID

The dejo grating DPH is a commonly used type for heavy loads such as freight traffic and forklift trucks. The load on a grating is determined by the interplay of forces of span, bearing bars and mesh pattern. More span gives more deflection and thus a lower load. A denser mesh pattern gives more load-bearing bars per grating and thus a higher load. The use of heavier load-bearing bars speaks for itself.

The DPH grating with bearing bars 150-5, filler bars 30-5 and meshes 33x33 is a common type for heavy traffic with a maximum load of 12 tonnes per wheel at a span of 1000 mm.


Projects Contact


Dimensions of steel press gratings:
The following applies to hot-dip galvanised gratings as a guide to minimum and maximum dimensions::

Bearing bar length : 200 - 3000 mm
Bearing bar height : 20 - 150 mm
Bearing bar thickness : 4 - 5 mm
Bearing bars :
20 x 4 20 x 5
25 x 4 25 x 5
30 x 4 30 x 5
35 x 4 35 x 5
40 x 4 40 x 5
45 x 4 45 x 5
50 x 4 50 x 5
55 x 4 55 x 5
60 x 4 60 x 5
70 x 4 70 x 5
80 x 4 80 x 5
  90 x 5
  100 x 5
  110 x 5
  120 x 5
  130 x 5
  140 x 5
  150 x 5

Filling bar length : 200 - 2300 mm
Filling bar height : 12 - 20 mm
Filling bar thickness : 3 - 5 mm
Filling bars :
10 x 3
12 x 3 12 x 5
15 x 3
  20 x 5
For forklift use, we recommend cross-welding the filler bars.

Grid size : 0,20 - 3,0 m²
Grid weight : max. 250 kg
Length-to-width ratio of grids:
1 : 3 or 3 : 1 volume
Finishing:
  • Hot-dip galvanised in accordance with NEN-EN-ISO 1461
  • Powder coating using TVP Duplex process

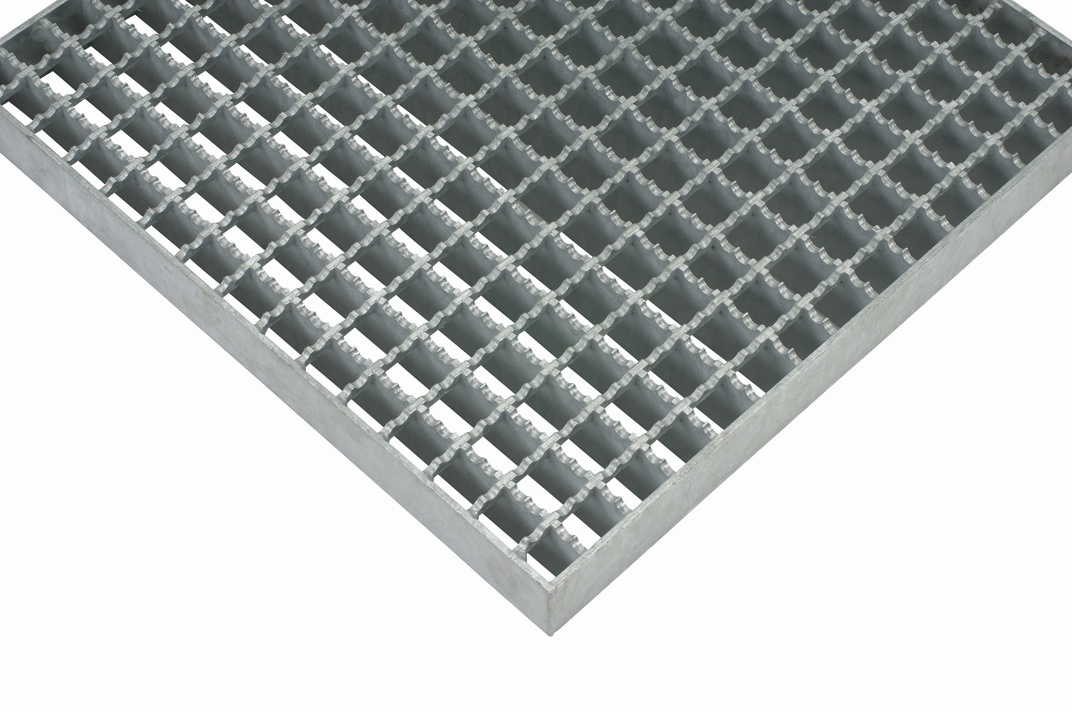

Most gratings can be equipped with anti-slip, double anti-slip and kick or lowered edge. From standard shapes to special cut-outs..




Stainless steel 304 - 316 press gratings:
For gratings made of stainless steel, the following applies as a guide to minimum and maximum dimensions:

Bearing bar length : 200 - 3000 mm
Bearing bar height : 30 - 70 mm
Bearing bar thickness : 5 mm
Bearing bars :
30 x 5
40 x 5
50 x 5
60 x 5
70 x 5
80 x 5


Filling bar length : 200 - 2000 mm
Filling bar height : 20 - 60 mm
Filling bar thickness : 3 - 5 mm
Filling bars :
10 x 3*
15 x 5


Grid size : 0,20 - 3,0 m²
Grid weight : max 250 kg
Length-to-width ratio of grids:
1 : 3 or 3 : 1 volume
Finishing:
  • Pickled and passivated
  • Powder coating by TVP Duplex process
















Most gratings can be equipped with anti-slip, double anti-slip and kick or lowered edge. From standard shapes to special cut-outs.


Various meshes
dejo offers the possibility to produce gratings in different mesh sizes. Usually, press gratings are produced as standard in mesh 33.33 x 33.33 mm. But dejo can produce gratings in many different meshes: e.g. 16x22 mm, 22x16 mm and 22x44 mm etc.

The mesh table below shows the different possibilities.

MESH  TABLE



Bearing bar distance

Filling bar spacing h.o.h



1611

2222

3333

4444

5000

6666

7777

8888

9999

1666

•

•

•

•

•

•

•

•

•

2222

•

•

•

•

•

•

•

•

•

3333

•

•

•

•

•

•

•

•

•

4444

•

•

•

•

•

•

•

•

•

5000

•

•

•

•

•

•

•

•

•

6666

•

•

•

•

•

•

•

•

•

7777

•

•

•

•

•

•

•

•

•

8888

•

•

•

•

•

•

•

•

•

9999

•

•

•

•

•

•

•

•

•




standard mesh size 3333 x 3333
