DPG DEJO PRESS GRATINGS

The dejo grating DPG is a widely used type for normal walking loads. The load on a grating is determined by the interplay of forces of span, bearing bars and mesh pattern.

More span gives more deflection and thus a lower load. A denser mesh pattern gives more bearer bars per grating and thus allows a higher load.

Applying heavier bearer bars is also a possibility to apply a higher load.

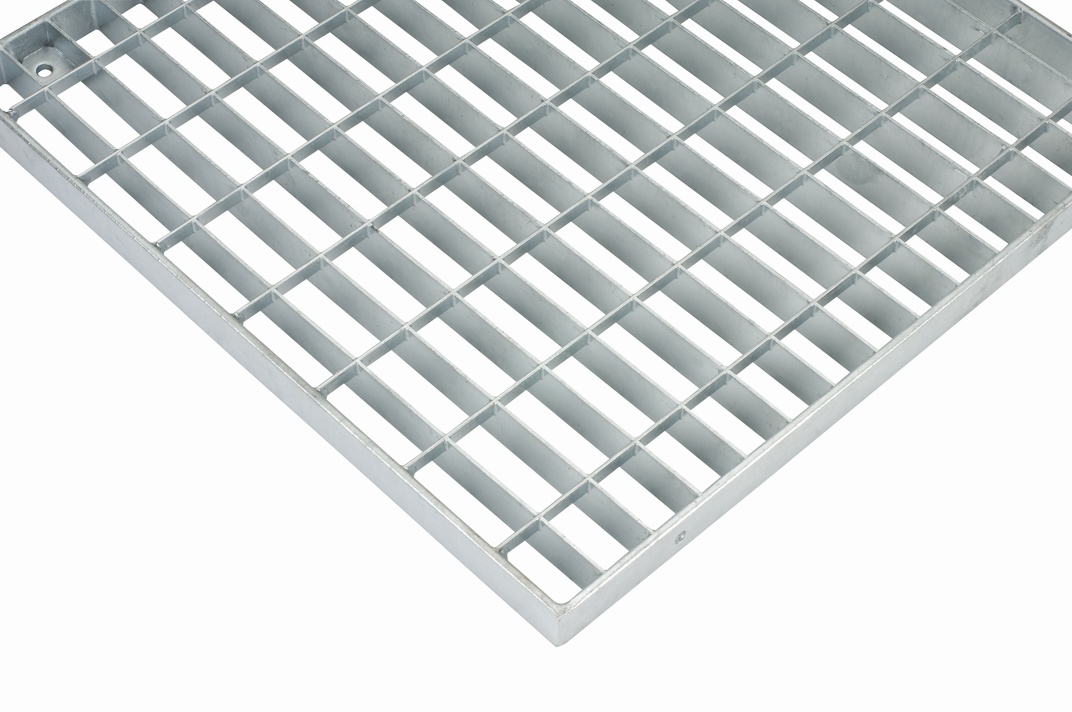

The DPG grating with bearing bar 30-2, filling bar 10-2 and meshes 33x33 is considered the standard "dejo grating" and can be produced any size up to a maximum of 3000 mm in length or width.


Projects Contact      ORDER



Dimensions of steel press gratings:
For gratings in hot-dip galvanised design, the following applies as a guide to the minimum and maximum dimensions:

Bearing bar length : 140 - 3000 mm
Bearing bar height : 20 - 60 mm
Bearing bar thickness : 2 - 5 mm
Bearing bar :
20 x 2 20 x 3
25 x 2 25 x 3
30 x 2 30 x 3
40 x 2 40 x 3
45 x 2 45 x 3
50 x 2 50 x 3
60 x 2 60 x 3
70 x 2 70 x 3

Filling bar length : 140 - 3000 mm
Filling bar height : 20 - 60 mm
Filling bar thickness : 2 - 3 mm
Filling bars :
10 x 2* 10 x 3
12 x 3 12 x 3
* usual for bearer bars up to 3 mm thick

Grid size : 0,20 - 3,0 m²
Length-to-width ratio of grids: 1 : 3 or 3 : 1 content
Finishing:
  • Galvanised according to NEN-EN-ISO 1461
  • Powder coating using TVP Duplex process

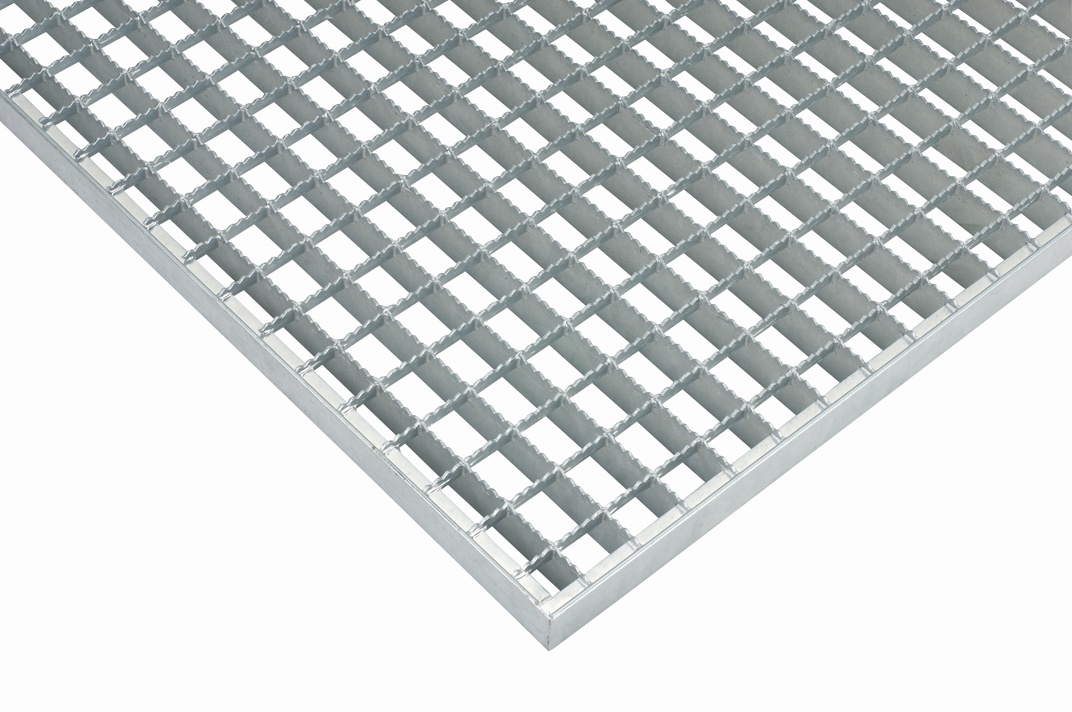

Most gratings can be equipped with anti-slip, double anti-slip and kick or lowered edge. From standard shapes to special cut-outs.


Stainless steel 304 - 316 press gratings:
For gratings made of stainless steel, the following applies as a guide to minimum and maximum dimensions:

Bearing bar length : 140 - 3000 mm
Bearing bar height : 20 - 60 mm
Bearing bar thickness : 2 - 5 mm
Bearing bar :
  20 x 3
25 x 2 20 x 3
30 x 2 30 x 3
40 x 2 40 x 3
45 x 2 45 x 3
50 x 2 50 x 3
60 x 2 60 x 3
70 x 2 70 x 3

Filling bar length : 140 - 3000 mm
Filling bar height : 20 - 60 mm
Filling bar thickness : 2 - 3 mm
Filling bars :
10 x 2* 10 x 3
12 x 3 12 x 3
* usual for bearer bars up to 3 mm thick

Grid size : 0,20 - 3,0 m²
Length-to-width ratio of grids: 1 : 3 or 3 : 1 content
Finishing:
  •  Galvanised according to NEN-EN-ISO 1461
    Powder coating using TVP Duplex process

















Most gratings can be equipped with anti-slip, double anti-slip and kick or lowered edge. From standard shapes to special cut-outs..

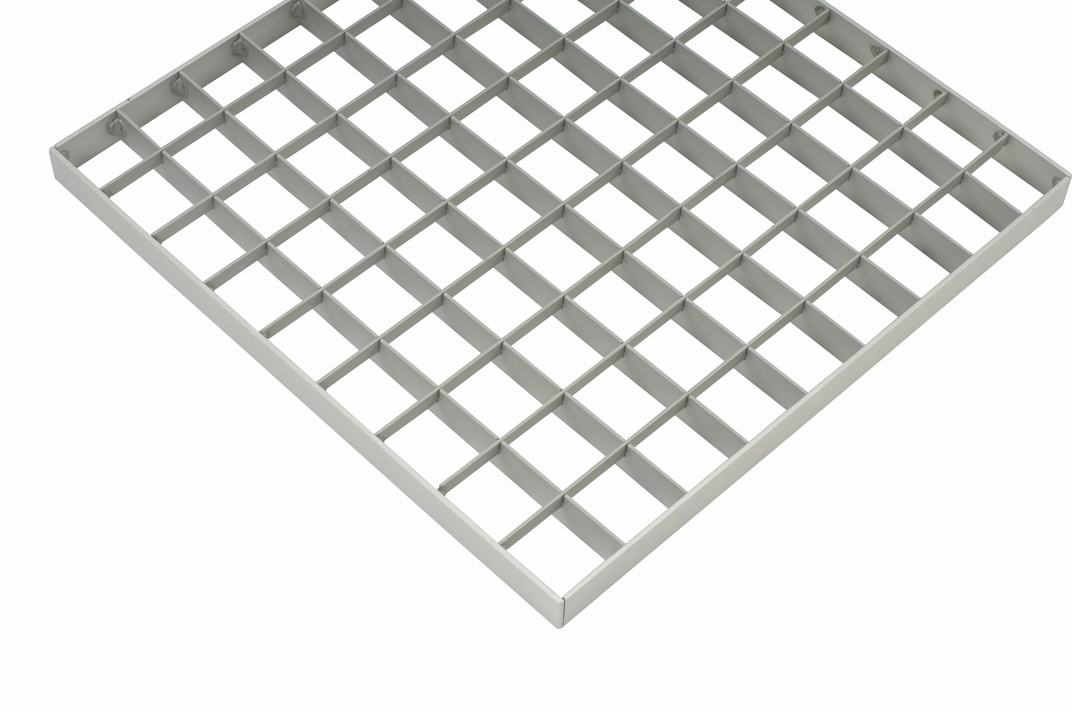

Dimensions of aluminium press gratings:
For gratings made of aluminium, the following applies as a guide to minimum and maximum dimensions:

Bearing bar length : 140 - 2000 mm
Bearing bar height : 20 - 60 mm
Bearing bar thickness : 2 - 5 mm
Bearing bar :
20 x 2 20 x 3
25 x 2 20 x 3
30 x 2 30 x 3
40 x 2 40 x 3
45 x 2 45 x 3
50 x 2 50 x 3
60 x 2 60 x 3
70 x 2 70 x 3

Filling bar length : 140 - 2000 mm
Filling bar height : 20 - 60 mm
Filling bar thickness : 2 - 3 mm
Filling bars :
10 x 2* 10 x 3
12 x 3 12 x 3
* usual for bearer bars up to 3 mm thick

Grid size : 0,20 - 3,0 m²
Length-to-width ratio of grids: 1 : 3 or 3 : 1 content
Finishing:
  •  Galvanised according to NEN-EN-ISO 1461
  •  Powder coating using TVP Duplex process

















Most gratings can be equipped with anti-slip, double anti-slip and kick or lowered edge. From standard shapes to special cut-outs.


The various meshes

Dejo offers the possibility of producing gratings in different mesh sizes. Usually, press gratings are produced as standard in mesh 33.33 x 33.33 mm. But dejo can produce gratings in many different meshes: e.g. 11x22 mm, 22x11 mm and 22x33 mm etc.

The mesh table below shows the various possibilities.



MESHTABLE



Bearing bar distance

VFilling bar spacing h.o.h



1111

2222

3333

4444

5000

6666

7777

8888

9999

1111

•

•

•

•

•

•

•

•

•

1666

•

•

•

•

•

•

•

•

•

2222

•

•

•

•

•

•

•

•

•

3333

•

•

•

•

•

•

•

•

•

4444

•

•

•

•

•

•

•

•

•

5000

•

•

•

•

•

•

•

•

•

6666

•

•

•

•

•

•

•

•

•

7777

•

•

•

•

•

•

•

•

•

8888

•

•

•

•

•

•

•

•

•

9999

•

•

•

•

•

•

•

•

•




 standard mesh size 3333 x 3333



Dejo has a wide range of standard gratings, grating steps, dejogrip steps, plastic gratings and clips suitable for walking loads and light traffic. More than 300 articles are delivered from stock from our warehouse in Wolvega. Products ordered before 11.00 are delivered the next days throughout the EU.

Grid specifications
Bearer bars see table, filler bars 10 x 2 mm.
Mesh width of bearing and filling bars 33.33 mm centres.
A tolerance on length and width of + 0 to - 4 mm applies to the grating dimensions.
The first dimension indicates the length of the bearer bars (span), which must be supported at the ends.

Here you can also directly online order.

ORDER

Stock press gratings DPG
  25x2 30x2 30x3     25x2 30x2 30x3
300 x 500 •       900 x 500 •
300 x 600 •       900 x 600 •   •
300 x 1000 •   •   900 x 700 •
400 x 500 •       900 x 800     •
400 x 600 •       900 x 1000 •   •
400 x 700 •       900 x 1200     •
400 x 800 •       900 x 1500     •
400 x 1000 •   •   1000 x 400 •
500 x 800 •       1000 x 500 • • •
500 x 1000 •   •   1000 x 600 • • •
600 x 600 •       1000 x 700 •   •
600 x 700 •       1000 x 800 • • •
600 x 800 •       1000 x 900 •   •
600 x 900 •       1000 x 1000 • • •
600 x 1000 •   •   1000 x 1200 •   •
600 x 1200 •       1000 x 1500 • • •
600 x 1500 •       1100 x 1000   •
700 x 500 •       1200 x 500   • •
700 x 600 •       1200 x 600   • •
700 x 1000 •   •   1200 x 700     •
800 x 500 •       1200 x 800   • •
800 x 600 •       1200 x 1000   • •
800 x 700 •       1250 x 1000   •
800 x 800 •       1200 x 1500     •
800 x 900 •       1500 x 500     •
800 x 1000 • • •   1500 x 600     •
          1500 x 800     •
          1500 x 1000     •




Download more technical information on DPG Dejo press gratings here:
