DPL DEJO LOUVRE GRATINGS

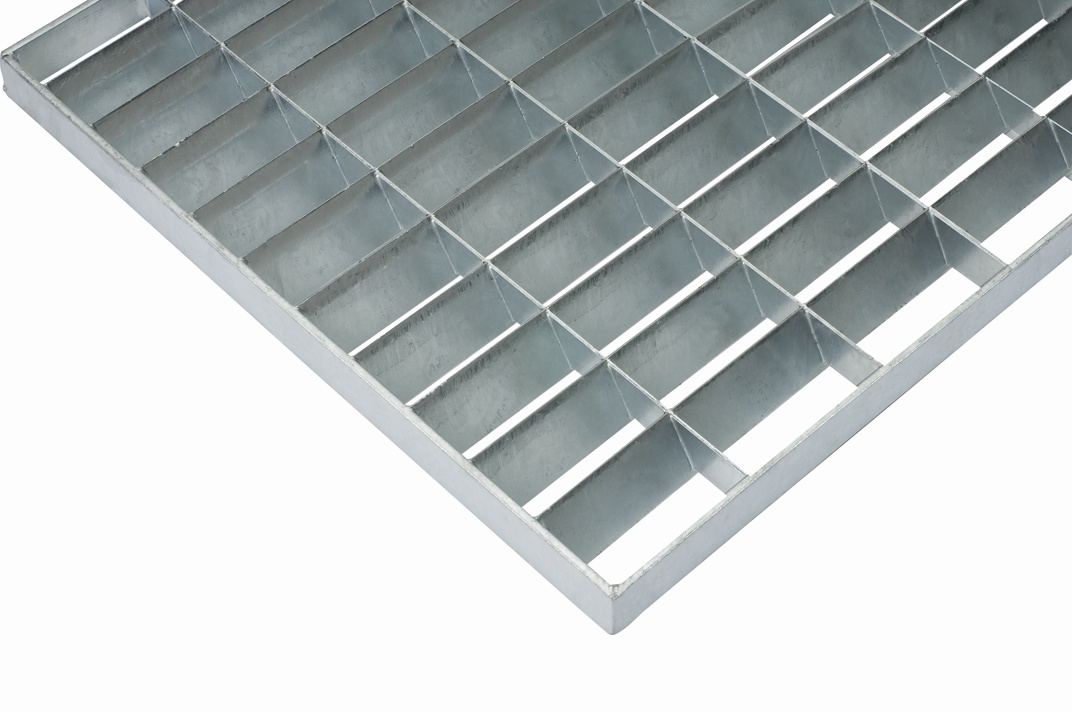

DPL Dejo louvre gratings are gratings where the filler bar ("louvre") is placed in the support the baering bar . This type of grating is mainly used vertically as a facade grating, ventilation grating, solar protection or fencing. The mesh pattern of the filler determines to a large extent the transmission of light, vision or air.

A commonly used type is the Dejo louvre with bearing bar 30-2, filler bar 40-2, angle 45 degrees and 99x33 mesh. The maximum size is 3000 mm high or 2000 mm wide.


Projecten Contact


Dimensions of steel press gratings:
For gratings in hot-dip galvanised design, the following applies as a guide to minimum and maximum dimensions:

Bearing bar length : 200 - 3000 mm
Bearing bar height : 25 - 60 mm
Bearing bar thickness : 2 - 5 mm
Bearing bars :
25 x 2 25 x 3
30 x 2 30 x 3
35 x 2 35 x 3
40 x 2 40 x 3
45 x 2 45 x 3
50 x 2 50 x 3
60 x 2 60 x 3


Filling bar length : 200 - 2000 mm
Filling bar height : 25 - 60 mm
Filling bar thickness : 2 - 3 mm
Edge (degrees) : 30 - 45 - 60
Filling bars :
25 x 2 25 x 3
30 x 2 30 x 3
35 x 2 35 x 3
40 x 2 40 x 3
45 x 2 45 x 3
50 x 2 50 x 3
60 x 2 60 x 3
* Filling bar thickness must be equal to bearing bar thickness

Grid size : 0,20 - 3,0 m²
Edge finishing : 5 mm dik
Length-to-width ratio of grids:
1 : 3 or 3 : 1 content
Finishing:
  • Hot-dip galvanised in accordance with NEN-EN-ISO 1461

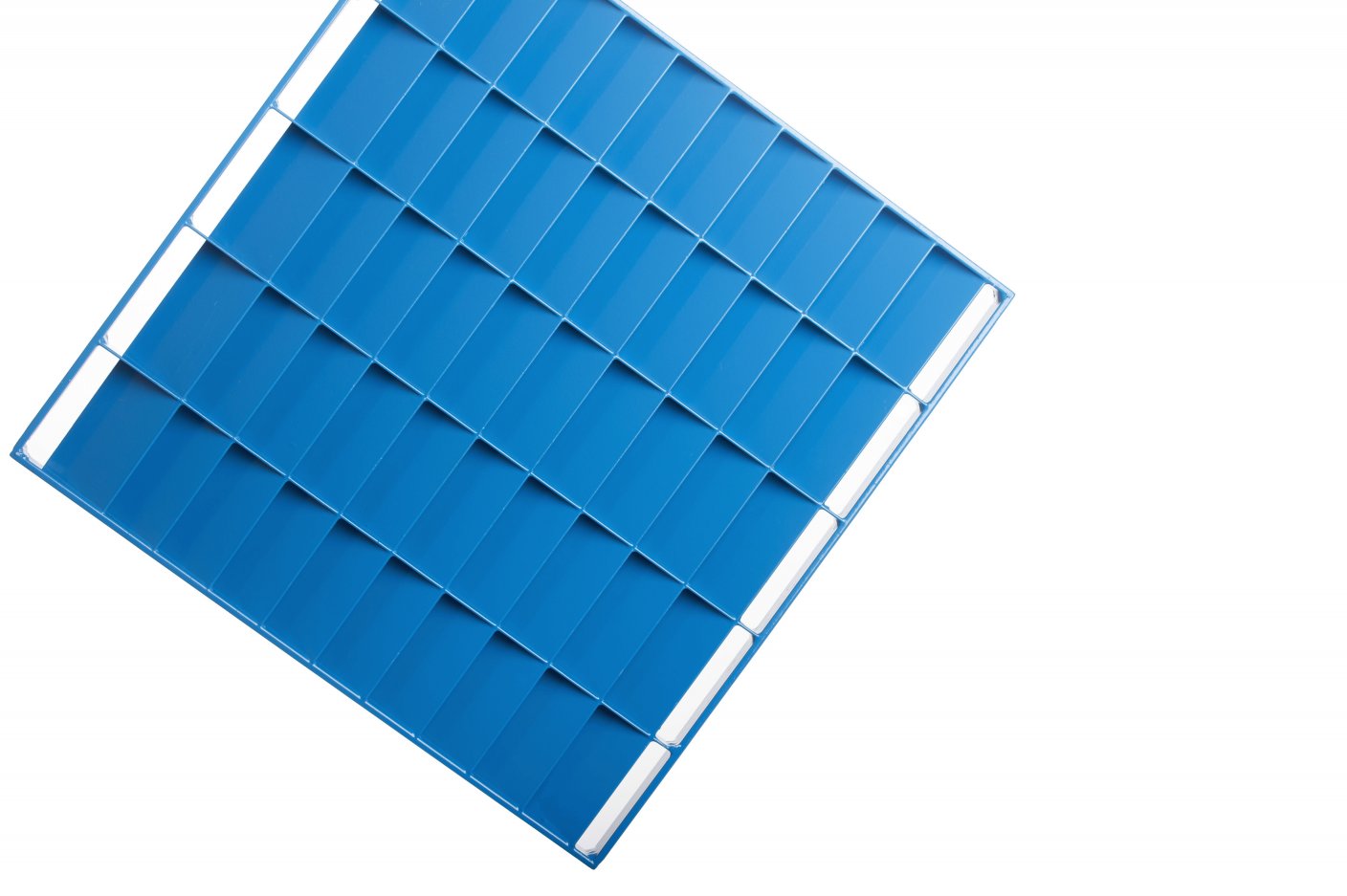

  • Powder coating using TVP Duplex process















dejo has the technology to customise these gratings for you. We do this in consultation.


Schoepenrooster met randafwerking hoeklijn met gaten


Options for fixing louvre grilles:

- holes in the edge
- welded-on plates with hole
- welded-on plates with hole, possibly with partial filler rod raveling
- so-called bed-hook construction








Stainless steel paddle gratings:
On request

Dimensions of aluminium louvre gratings:
On request


Various meshes

dejo offers the possibility to produce the louvre gratings in different mesh sizes. Usually, a vane grille is produced as standard in mesh size 99.99 x 33.33 mm. But dejo can produce gratings in many different meshes: e.g. 99x50 mm, 66x33 mm and 33x33 mm etc.
schoepenrooster doorsnee
The mesh table below shows the different possibilities.

MESH  TABLEL



Bearing bar distance

Filling bar (louvers) h.o.h



2222

3333

4444

5000

6666

9999

3333

•

•

•

•

•

•

4444

•

•

•

•

•

•

5000

•

•

•

•

•

•

6666

•

•

•

•

•

•

9999

•

•

•

•

•

•




standard mesh size 3333 x 3333



Download more technical information on DPL Dejo louvre gratings here:
